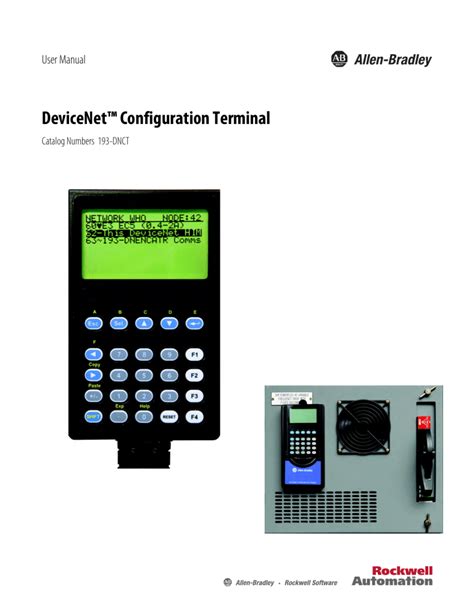

Devicenet Configuration Terminal User Manual

Devicenet Configuration Terminal User Manual Devicenet Configuration Terminal A Comprehensive User Manual DeviceNet a popular fieldbus technology plays a crucial role in industrial automation facilitating communication between various devices on a network Configuring this network often requires interaction with a DeviceNet configuration terminal a dedicated interface for setting up and managing network parameters This comprehensive guide serves as a definitive resource guiding users through both the theoretical foundations and practical applications of DeviceNet configuration terminals I Understanding DeviceNet Fundamentals Before diving into configuration its vital to understand the basics of DeviceNet Imagine a bustling factory floor DeviceNet acts as the communication highway allowing different machines sensors actuators controllers to exchange vital information efficiently Unlike a simple pointtopoint connection DeviceNet utilizes a masterslave architecture A master device typically a programmable logic controller or PLC controls communication polling slave devices sensors and actuators for data and sending commands This communication relies on a physical medium typically a twistedpair cable and a specific communication protocol Each device on the network has a unique address enabling the master to identify and communicate with specific components The networks topology is generally linear although branching is possible with appropriate hardware II to the DeviceNet Configuration Terminal The DeviceNet configuration terminal is your gateway to managing this communication highway Its a handheld or softwarebased tool that provides a userfriendly interface for Addressing Devices Assigning unique addresses to each slave device on the network Think of it as assigning house numbers to houses on a street each needs a unique identifier for mail delivery data transmission Network Configuration Setting parameters like baud rate network termination and network scan time This is akin to setting up traffic rules for the highway ensuring smooth and efficient flow Node Identification Identifying each device connected to the network checking their health and status Similar to conducting a street census ensuring all inhabitants devices are 2 accounted for Diagnostic Testing Troubleshooting network issues identifying faulty devices or communication errors This is like diagnosing problems on the highway identifying roadblocks or traffic jams Parameter Setting Configuring specific parameters of individual devices allowing for customisation and optimization This is like adjusting individual house settings temperature lighting etc III Practical Applications Steps for Configuring a DeviceNet Network Lets outline the process of configuring a DeviceNet network using a configuration terminal 1 Physical Connection Connect the configuration terminal to the DeviceNet network using the appropriate cable Ensure proper grounding and safety measures are followed 2 Network Scan Initiate a network scan using the terminal This will identify all devices connected to the network and display their current addresses and status 3 Addressing Devices If new devices need to be added assign them unique addresses using the configuration terminal Avoid address conflicts ensure each device has a unique number 4 Parameter Setting Configure individual device parameters as needed This involves accessing the devices configuration registers through the terminal and adjusting settings according to the manufacturers specifications Consult the devices manual for specific parameters and their meanings 5 Network Configuration Set crucial network parameters such as baud rate communication speed network termination preventing signal reflections and scan time The choice of baud rate depends on the networks length and the speed requirements of the connected devices Proper termination is crucial for preventing signal distortion 6 Diagnostic Testing After configuration perform diagnostic tests to verify the networks integrity The configuration terminal provides tools to detect communication errors and identify faulty devices 7 Saving and Downloading Save the network configuration to the terminals memory and download it to the master device PLC to implement the settings IV Troubleshooting Common Issues Communication Errors Check cable connections terminations and device power The configuration terminal can help pinpoint the location of the communication failure Addressing Conflicts Ensure unique addresses are assigned to each device A network scan 3 will reveal address conflicts Device Malfunction Verify device power and functionality Use the diagnostic capabilities of the configuration terminal to identify faulty devices V Advanced Configuration Techniques For experienced users advanced techniques include Using EDS Files Electronic Data Sheets EDS provide detailed information about devices allowing for automated configuration and troubleshooting Remote Configuration Some configuration terminals support remote access enabling network management from a distance Network Segmentation Dividing a large network into smaller segments improves performance and reliability VI ForwardLooking Conclusion DeviceNet while a mature technology continues to evolve The advancements in configuration terminals including improved user interfaces and remote access capabilities simplify network management and enhance efficiency As the demand for automation and data exchange grows in industrial settings understanding and effectively utilizing DeviceNet configuration terminals will remain a crucial skill for automation engineers and technicians VII ExpertLevel FAQs 1 How do I handle a network with a large number of devices For large networks consider using network segmentation leveraging intelligent hubs or switches to create smaller more manageable subnetworks This reduces the load on the master device and improves overall network performance 2 What are the implications of incorrect baud rate settings An incorrect baud rate will result in communication failures The devices will not be able to communicate with each other effectively leading to system malfunctions Always ensure the baud rate is consistent throughout the network 3 How can I effectively diagnose intermittent communication issues Use the configuration terminals logging features to record network events Analyze these logs to identify patterns and pinpoint the source of intermittent problems Consider using network analyzers for deeper diagnostic capabilities 4 What is the role of EDS files in advanced configuration EDS files provide critical device information to the configuration terminal enabling automatic address assignment parameter 4 configuration and diagnostics They automate much of the manual configuration process minimizing errors and saving time 5 How does DeviceNet compare to other industrial fieldbus protocols like Profibus or EthernetIP Each protocol has its strengths and weaknesses DeviceNet offers simplicity and costeffectiveness for smaller to mediumsized networks Profibus provides high speed and robust performance for larger networks EthernetIP leverages the familiar Ethernet infrastructure allowing seamless integration with existing IT systems The best choice depends on the specific application requirements
